DC motor control board.

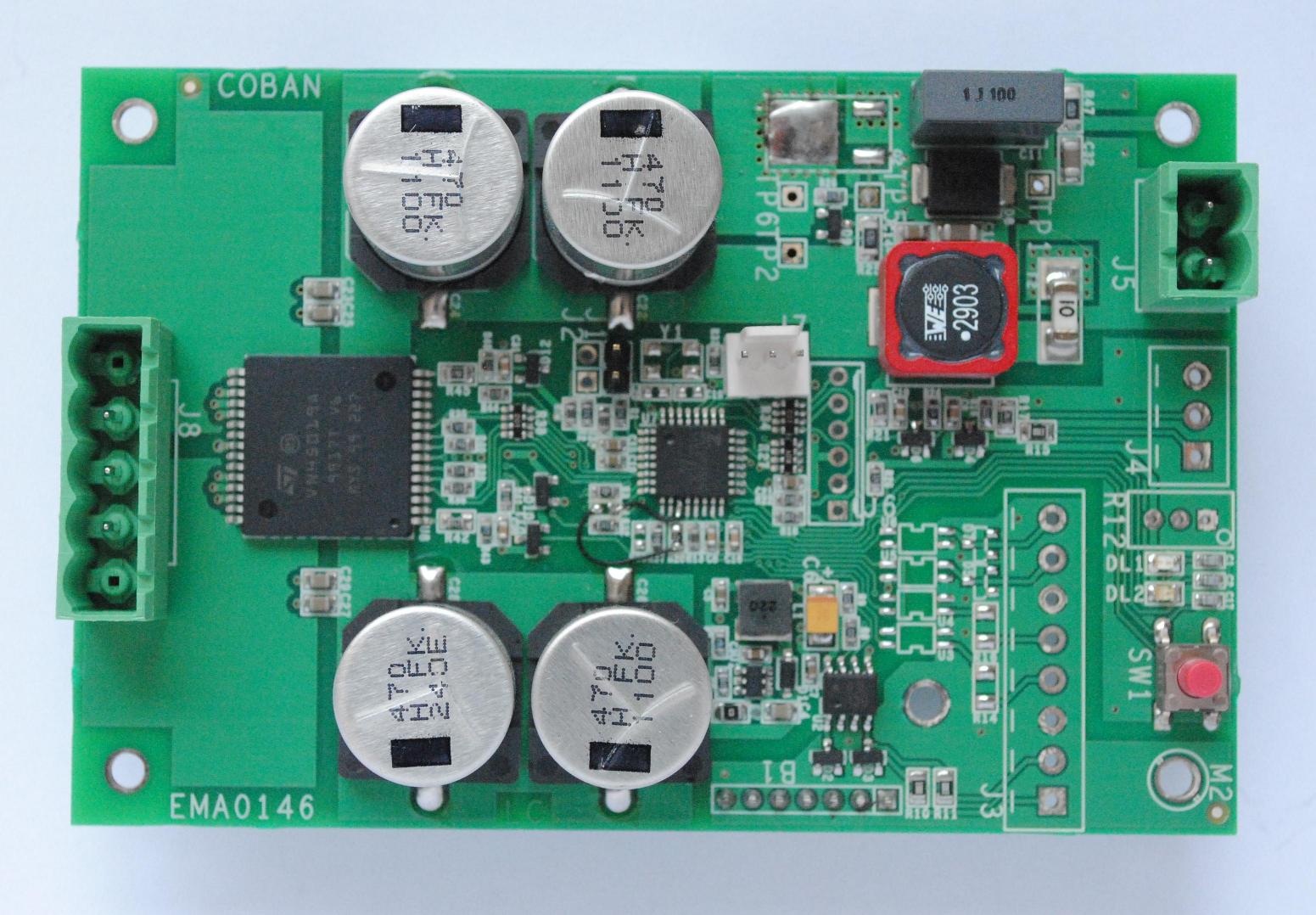

The card shown in figure has been developed to control a DC brush motor, of current up to 8A, from a stable supply from 12V to 24V.
The card management micro controller may control the motor speed generating the PWM control signal from different input logic:
- Analog control input 0-10V an logic input for direction
- Digital control based on pulse and direction inputs
- Optional asynchronous serial link.
